Clinical Chemistry Analyzer
(MCA-11/MCA-11 Plus)

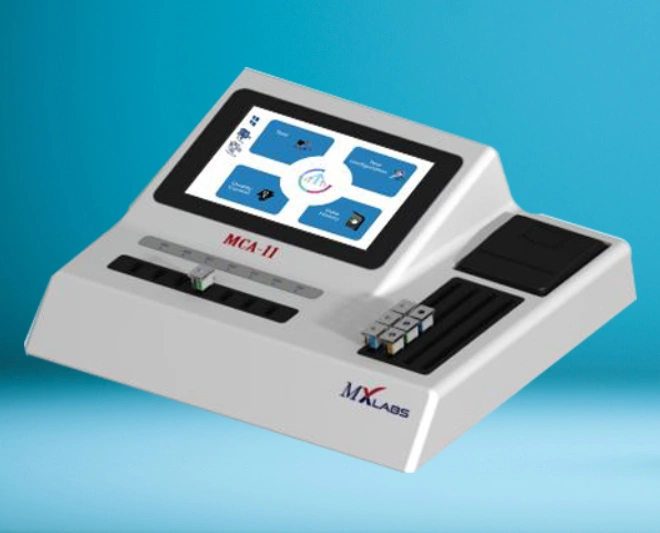

Clinical Chemistry Analyzer (MCA-11/MCA-11 Plus)

Clinical Chemistry Analyzer (MCA 11/MCA-11 Plus): Fully/Semi-automated analyzers for metabolic panels, renal/hepatic function, and lipid profiling with high reproducibility. Designed for ease of use with minimal maintenance and user-friendly software interface

Description

  • Mono test reagent format
  • Test Mode: Cuvette type
  • User friendly software
  • Real time graph option
  • More than 24 cuvette incubation
  • No washing system required
  • No carry over and contamination
  • Prefilled Single test reagents
  • LIS option for data transferring
  • Online software upgradation
SpecificationDetails
Analysis methodEnd point, Two point, Kinetics
Optics7 standard Wavelengths: 340, 405, 505, 545, 570, 630, 700 nm
Display7.0” touch screen, 800×480 pixels
PrinterInbuilt thermal printer, 57 mm printer paper
Resolution0.001 Abs
Photometric range0.000 – 3.00 Abs
IncubatorInbuilt incubator
Incubator Temperature37 °C
MemoryOver 300 programs, 200,000 results can be stored
Operational EnvironmentTemperature: 10~40 °C; Humidity: 30 - 80%
Power requirement12V 5A DC
Interface4 USB Host, 1 USB Slave, 1 Ethernet port
USB Host for keyboard, mouse, printer, U disk, barcode reader, etc.
USB Slave for PC connection
Dimension330 x 260 x 102 mm (L x W x H)
Weight2.5 Kg
